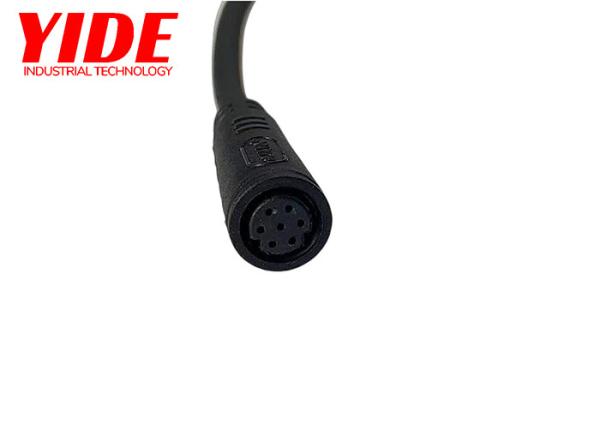

Waterproof Electric Bike Connector 7 Pin Female Cable Connector
1. product description
- Rated current: 2A.
- 8PIN power supply
- IP67 rating
- Voltage rating: 48V
- Cable Range: 3~11mm
- UL, TUV, CB, CCC, CE, RoHS approved
Cables and Connectors Complete Variety,wide Range of Applications;
More Secure and Reliable;
Solid Brass Nickel Plated Screws with Anti-vibration Loose Design, 48 Hours Salt Spray Tested;
Excellent Core Wire Cutting, Core Stripping and Welding Process;
the Special Flexible Material Cable Meets the Requirements of Mobile Wiring Drag Chain, Such As Bending Resistance and Abrasion Resistance;
Connector Assembly Method and Cable Length Can Be Customized.
Our products are widely used in LED light ,outdoor display ,electrical equipment ,automation machine ,electrical technology and medical equipment ,interactive samart grid,automation machine ,industrial pc ,marine device .
2. specification
| Brand: | YIDE |
| P/N: | YIDE-311 |
| MOQ: | 500PCS/PER |
| Place of Origin: | Kunshan City,China |
| Delivery Time: | 1 week |
| Start Port: | Shanghai |
| | |
| General features: |
| Product Name | M8 Series |
| Product Spec | 7PIN Famale |
| Connector locking system | N/A |
| Degree of protection | IP67 |
| Ambient temperature(operation) | -25°C~+85°C |
| Customs tariff number | 8536901900 |
| Environmental compliance | RoHs, Reach |
| | |
| Electrical parameters: |
| Rated voltage | 48V |
| Rated current(25°C) | 2A |
| Withstand voltage | 500V |
| Contact resistance | ≤10mΩ |
| Insulation resistance | ≥20MΩ |
| | |
| Mechanical performance: |
| Mechanical operation | ≤200 mating cycles |
| Insertion force | ≤20N |
| Pull out force | ≥3N |
| Wiring range | 0.14mm2-0.2mm2 |
| Application Area |
| Signal contal and transmission of electric bicycles, balance bikes ans sooter |
3. application
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery
4. more picture
5. company profile
Yide Industrial Technology Co., Ltd. is dedicated to providing customers with high-quality and cost-effective connector and new energy charging pile solutions. We look forward to cooperating with you to create a better future.
6. FAQ
Why choose us?
1) Using safer and more environmentally friendly materials
2) Adopt high quality brass, copper, brass lead-free alloy
3) Small resistance, fast current
4) Oxidation resistance, waterproof, high and low temperature resistance
5) More than 10 years of quality assurance for brand manufacturers' direct sales
6) According to product requirements + cable configuration
7) OEM+ ODM
8) After-sales service is guaranteed, 24-hour manual customers online
